Ford F550 Dually (2005-2025) to Semi Wheel Adapters
- Free Canadian Shipping
Zero Guesswork.
Bolt-On Confidence
Alright, so you drive a powerstroke. You've already established dominance, but you still need a lil something to set yourself apart. Whether you're grabbing a double double at Tim's or parking up for spring breakup, some semi wheels are going to do you the trick. And tell ya what, these adapters make that simple.

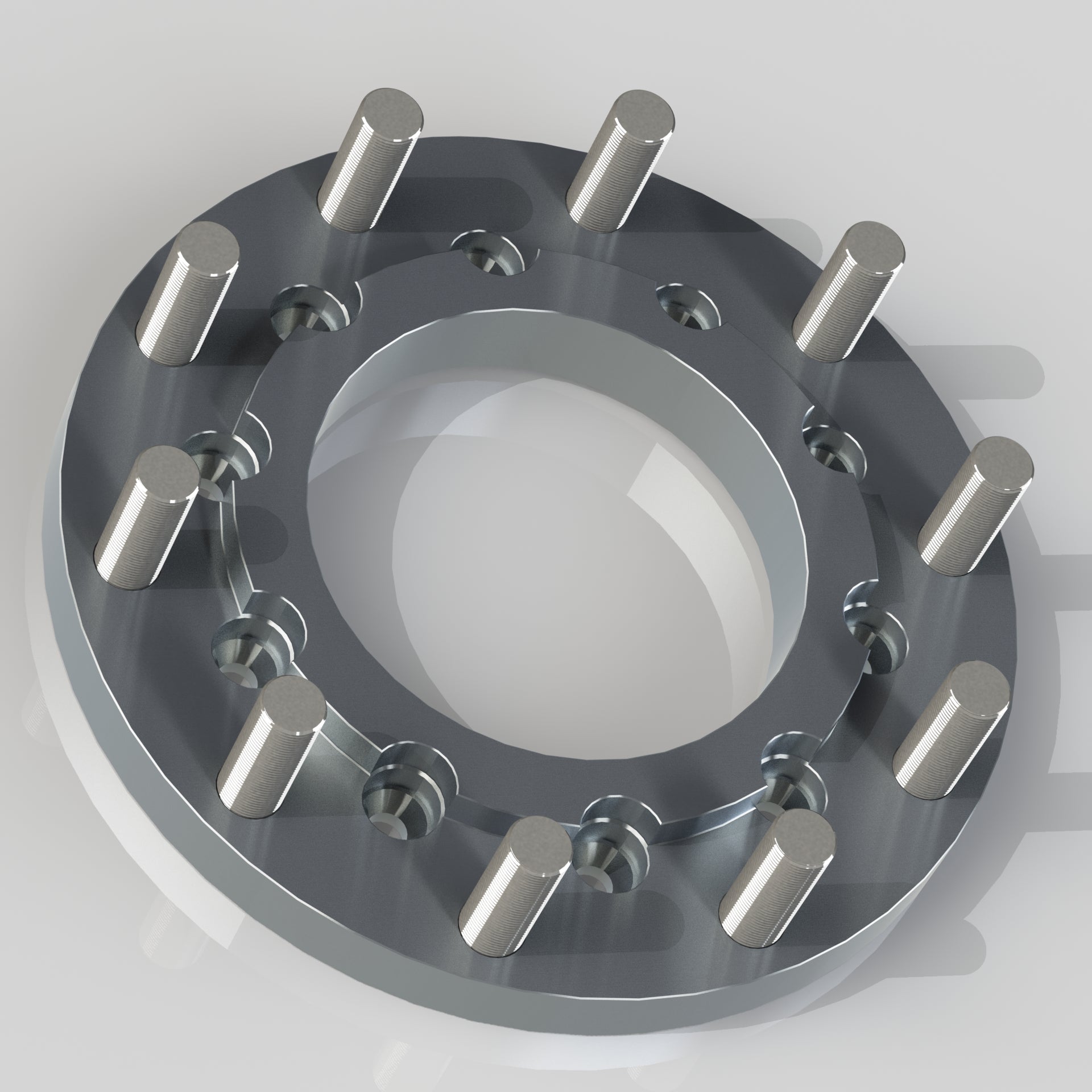

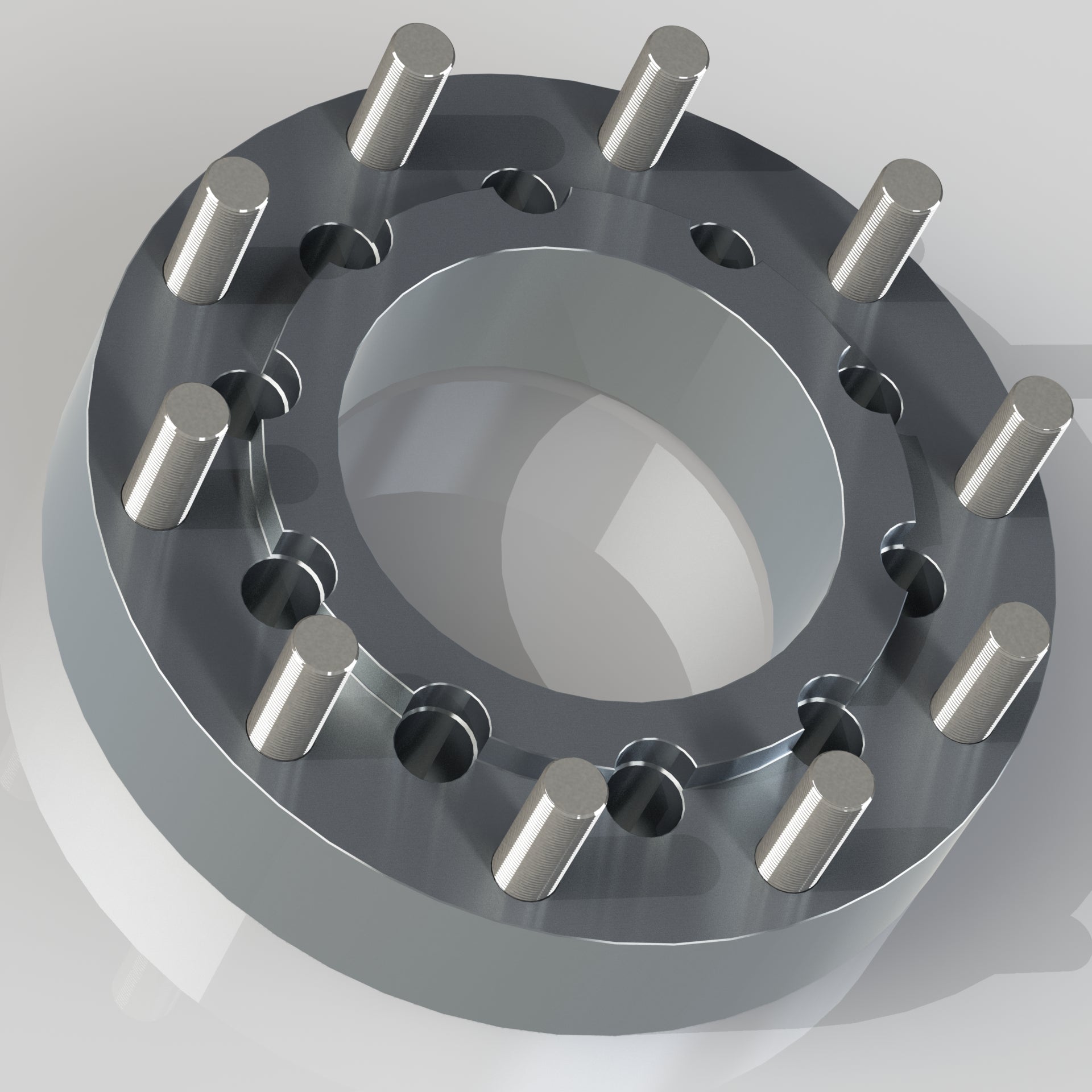

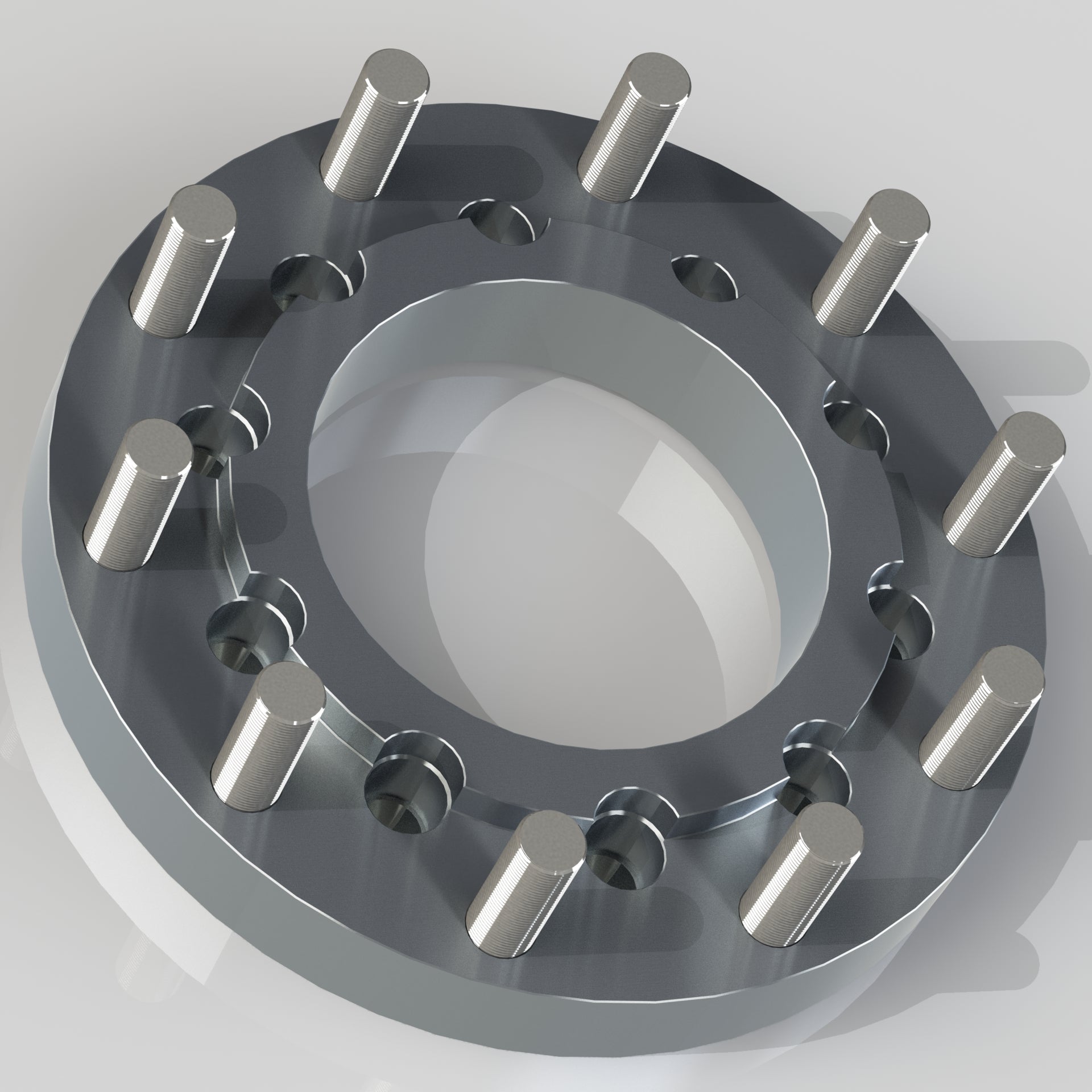

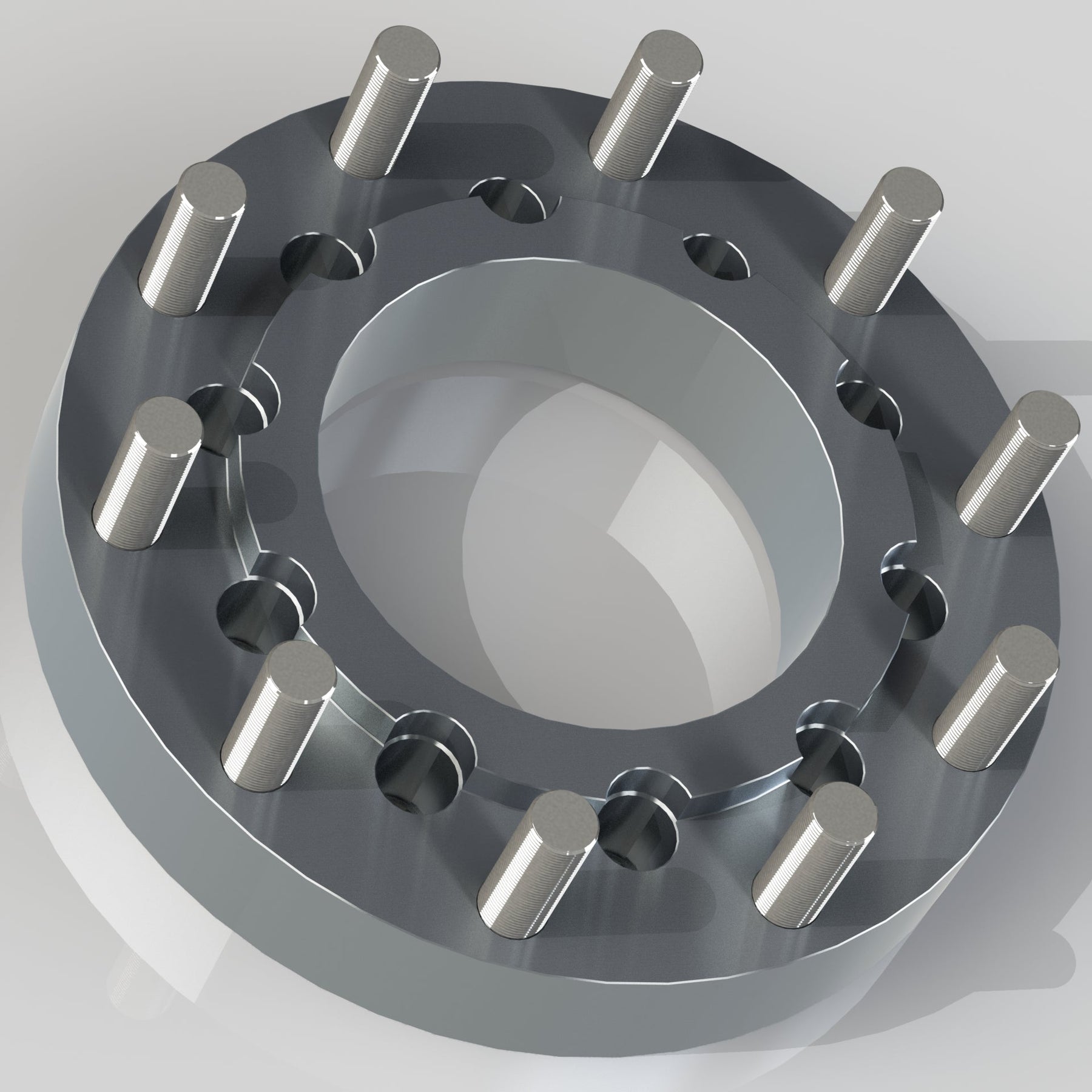

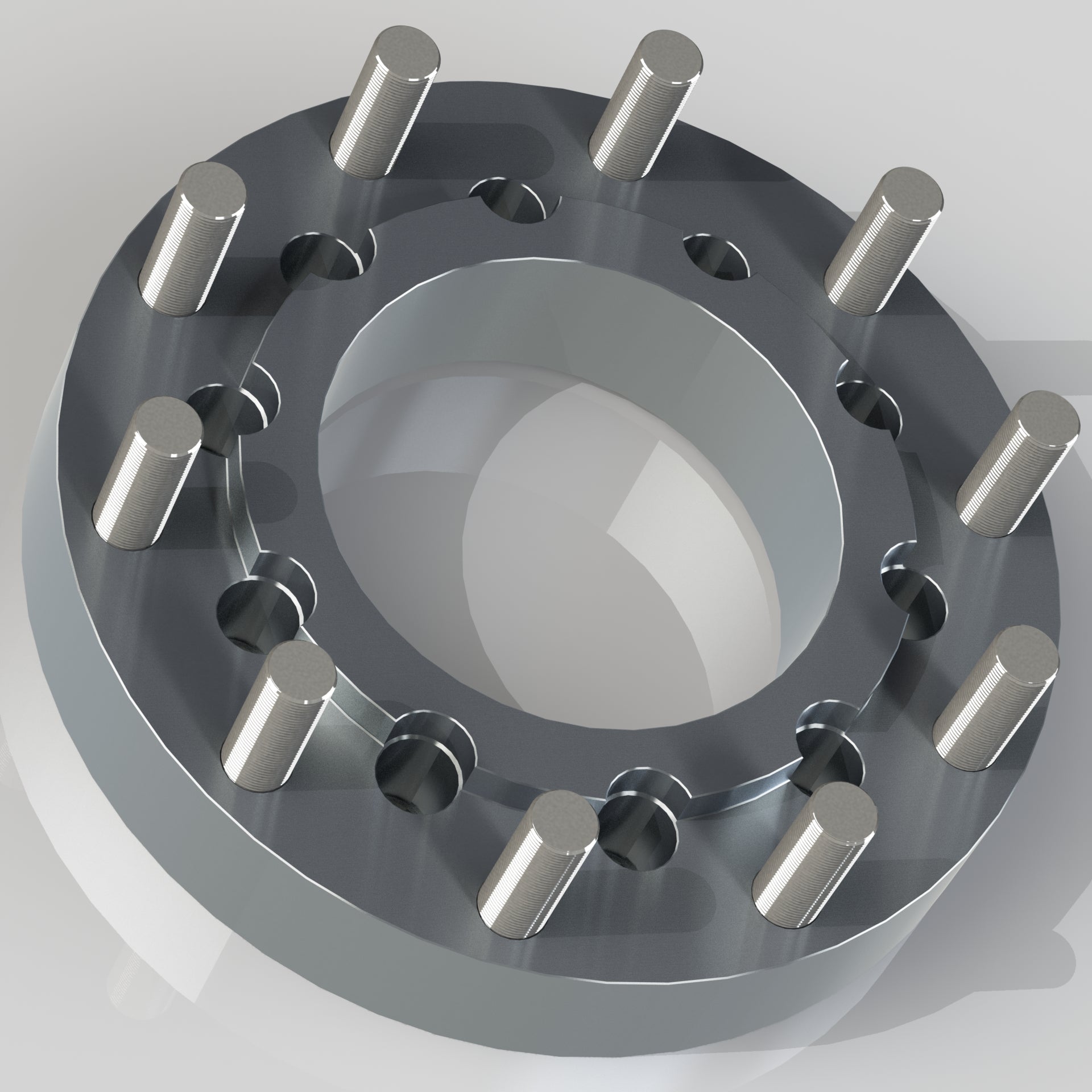

These adapters come in sets of two. We include all the required hardware to mount your wheels and adapters, that means the M22 lug nuts for your wheels and the M14 lug nuts for the adapter.
Variant Options Explained
The only thing we're changing here is the hub "spigot" length. That's the bit that the wheel actually centers on, since the hub thickness on steels and alloys is different we need to do different lengths there. The hub length is 1/2" for the front set, 3/4" for super singles, 1" for dual steelies, 1.25" for alloy/steel combo, and 1.5" for double alloys.
Why Choose Valios Dynamics Wheel Adapters
Frankly you can probably find cheaper adapters. The difference is the care and attention we put into each set. It's in every toolpath, every pass with a deburring tool. Each part we make is just as important as the last one. We're not getting rich here, honestly if we were smart we'd make oilfield parts or just send our drawings to China and have them make it, but we don't. We love making things, and making it simple and safe for people like you to modify your rig just the way you want. You can rest assured these aren't coming from overseas and being peddled as "Canadian Made".
- Direct Conversion: Adapt 10x225mm to 10x11.25" (285.75mm) for perfect compatibility.
- Exact Fitment: Engineered to exactly fit the 2005-2025 Ford F450 with a 170.1mm hub and M14-1.5 studs.
- Hub-Centric Design: Precision-machined for smooth, vibration-free driving.
- Premium Materials: CNC-machined 6061-T6 billet aluminum – strong, lightweight, and durable.
- OEM-Grade Hardware: Pre-installed, north american sourced, high-strength studs with OEM grade lug nuts included.
Includes
- Two billet aluminum adapters
- (20) M14-1.5 conical lug nuts (OEM grade)
- (20) M22-1.5 Flat lug nuts - 33mm hex
Key Specifications
- Base Bolt Pattern (Vehicle): 10x225mm
- Adapt To Bolt Pattern (Wheels): 10x11.25" (285.75mm)
- Center Bore: 170.1mm to 220mm
- Installed Stud: M22-1.5
- Included Lug Nuts: M14-1.5
- Material: 6061-T6 billet aluminum
Installation
So there are a few things to look out for with mounting up these adapters... For 1" thick adapters, you'll need to have your semi wheels machined, otherwise the lug nuts hit the centrebore. For the thicker variants the lug nuts are recessed enough, and then you just need to look out for how far your lug studs protrude and cut them down or mill your wheels if they stick out too far.
Valios Dynamics: Premium wheel adapters engineered so you can run the wheels you want, Zero Guesswork, Bolt on Confidence.
Each spacer set is unique; we build them especially for you. We aim to have everything milled up ready to ship in less than a week. Our products all ship for free within Canada, unless you're in Tuktoyaktuk or something crazy rural ike that, you know the drill.
